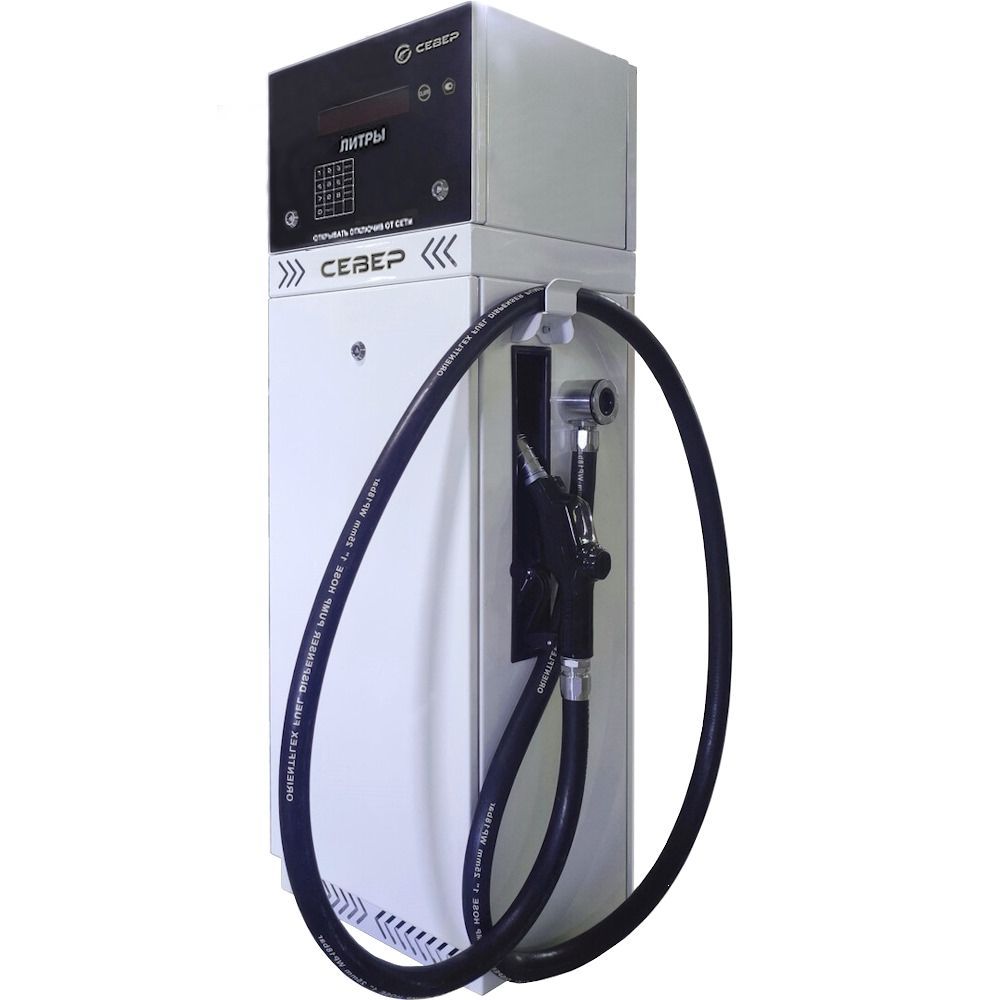

The fuel dispenser is made in a rectangular housing and is designed to dispense one type of fuel through one transfer sleeve. The column is equipped with a monoblock self-priming hydraulic system with a nominal flow rate of 80 l/min and an electronic counting device with an LED display.
The design provides a one-way control and display unit with a single-line display of data, and also supports interface, pulse, manual and local control.
The ambient temperature range in accordance with GOST 15150-69 is from +50 to -40 ° C for versions U1 and from +50 to -60 ° C for versions HL1. Relative humidity is allowed in the range from 30 to 100%, atmospheric pressure — from 84 to 106.7 kPa. The operating temperature range of the dispensed product is from +35 to -40 ° C for gasoline; from +50 to -40 °C for diesel fuel and kerosene, or up to the turbidity or crystallization temperature of the fuel.
The fuel dispenser is controlled using control systems (remote controls, controllers, or computers) approved for use in the Russian Federation.
