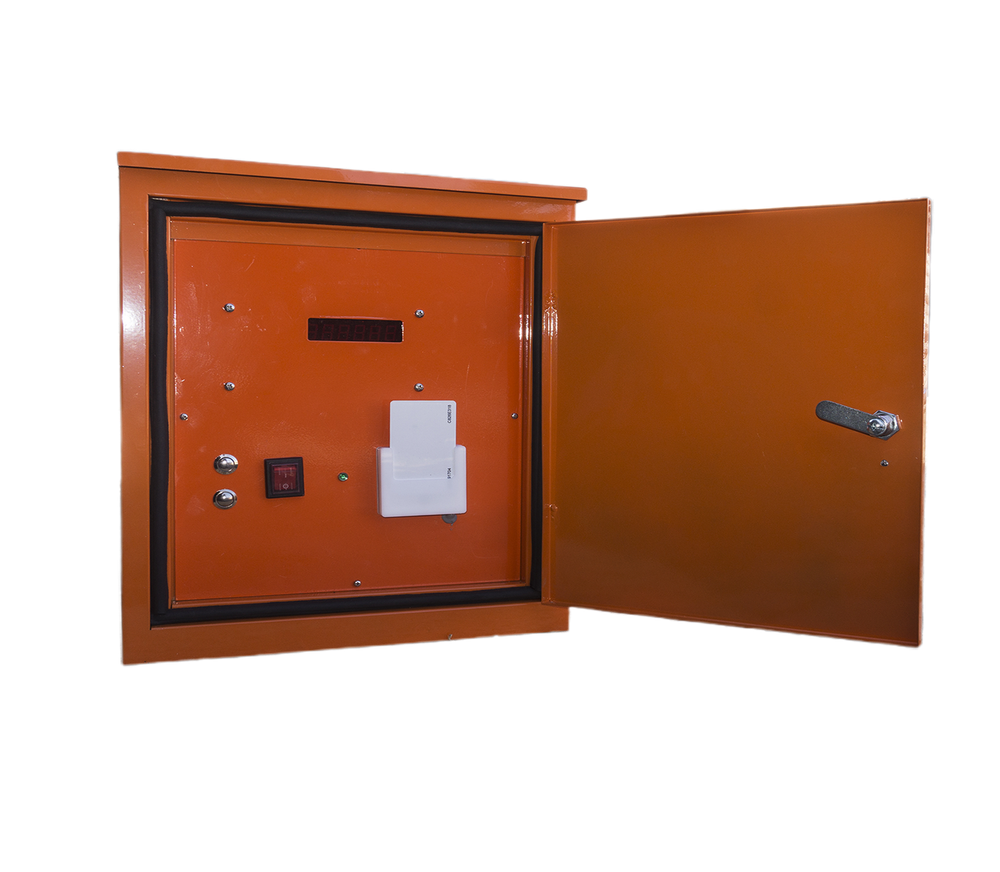

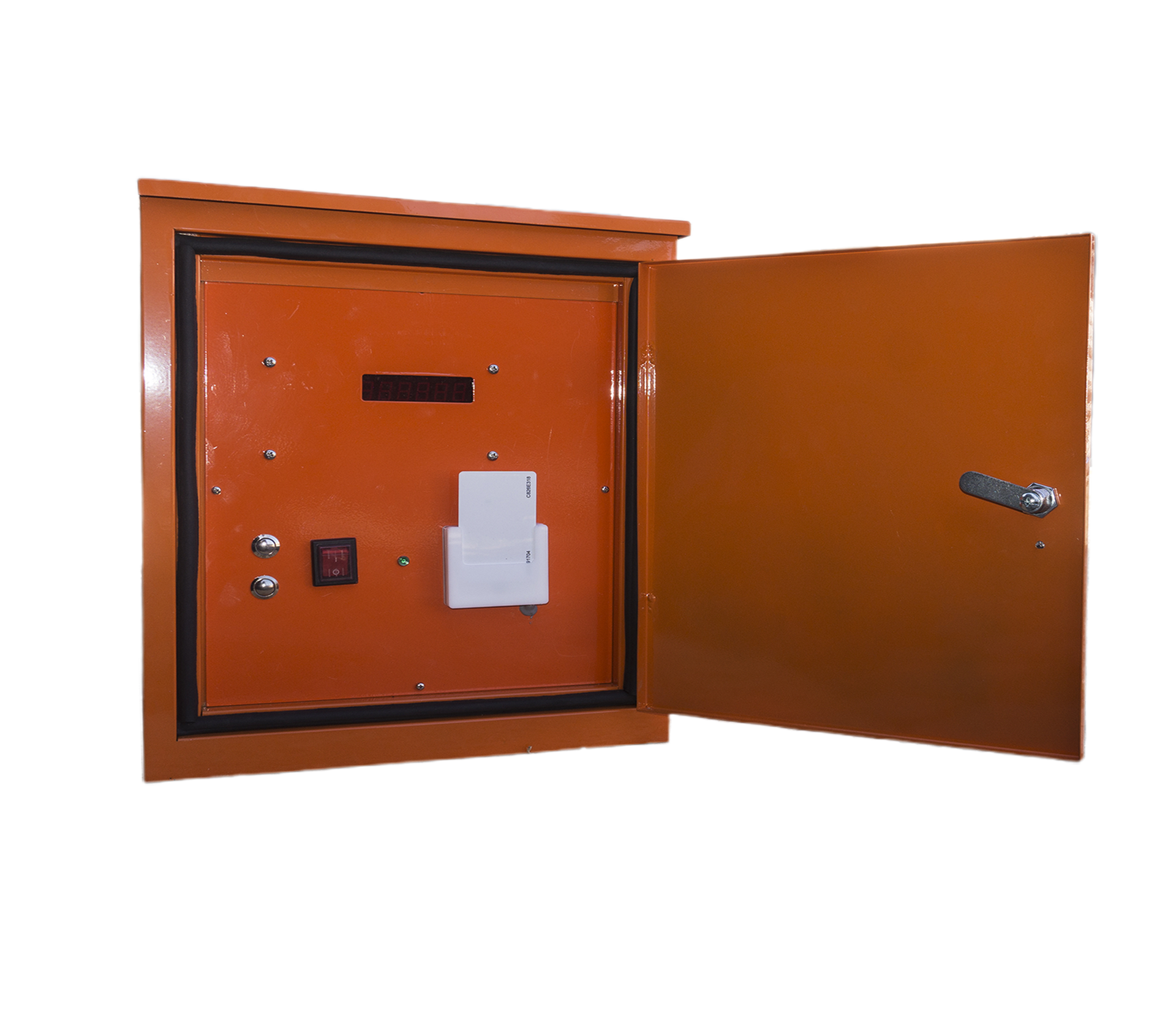

Fuel dispenser EFL BOX Mini compact 220 N (Without Keyboard)

Name: Fuel dispenser EFL BOX Mini compact 220 N (Without Keyboard)
SKU: 007438

Number

Add to comparison

full equipment, versatility (used both as a stationary fuel dispenser and on mobile tanks) budgetary cost, full automation (the unit has a full-fledged system for dispensing fuel using cards) integration with any cloud solutions.
Dimensions ( cm): height 41.5 width 40 depth 37.5
Contains:
- Meter OGM25-P
- Pump RA1 70 (220V, 70 l/min)
- valve MSF 25
Working temperature: from -25 +80С,
Accuracy: 0.5%
HS Code 8413110000

Description

Characteristics

Documentation

Description

The EFL BOX Mini compact B refueling module is designed for departmental dispensing of diesel fuel using fuel cards. The module is equipped with everything necessary for refueling using fuel cards with fuel dosing and data transfer to 1C, accounting systems and GPS monitoring.

В the B version is equipped with a fuel level sensor connector
LLS (RS485), without diesel fuel metering.

Equipment:

EFD-02 controller
ADAM PUMPS PA1 70 pump
OGM25 meter -P
MSF-25 Double Acting Valve

Characteristics

Brand

Exzotron

Weight

28,5

Dimension

41,5х40х37,5
