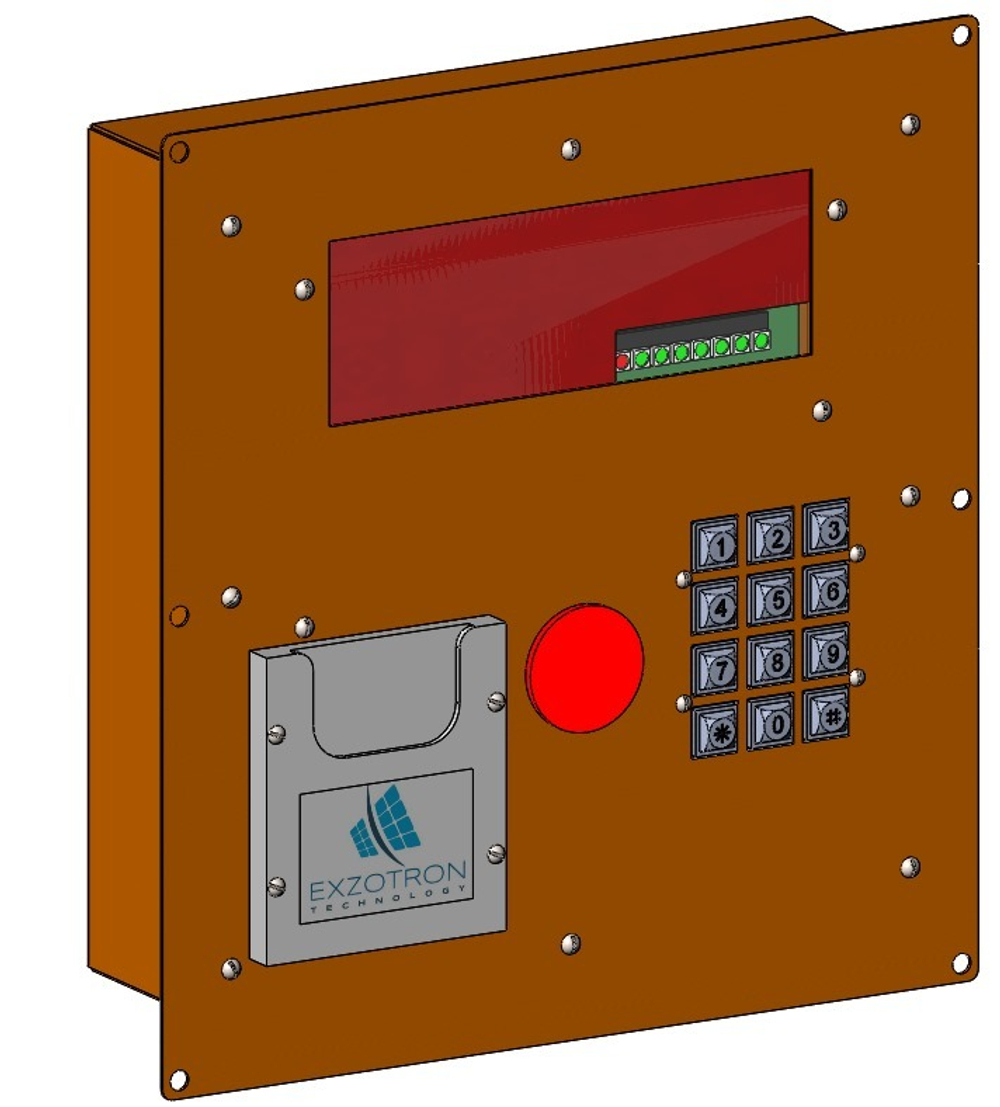

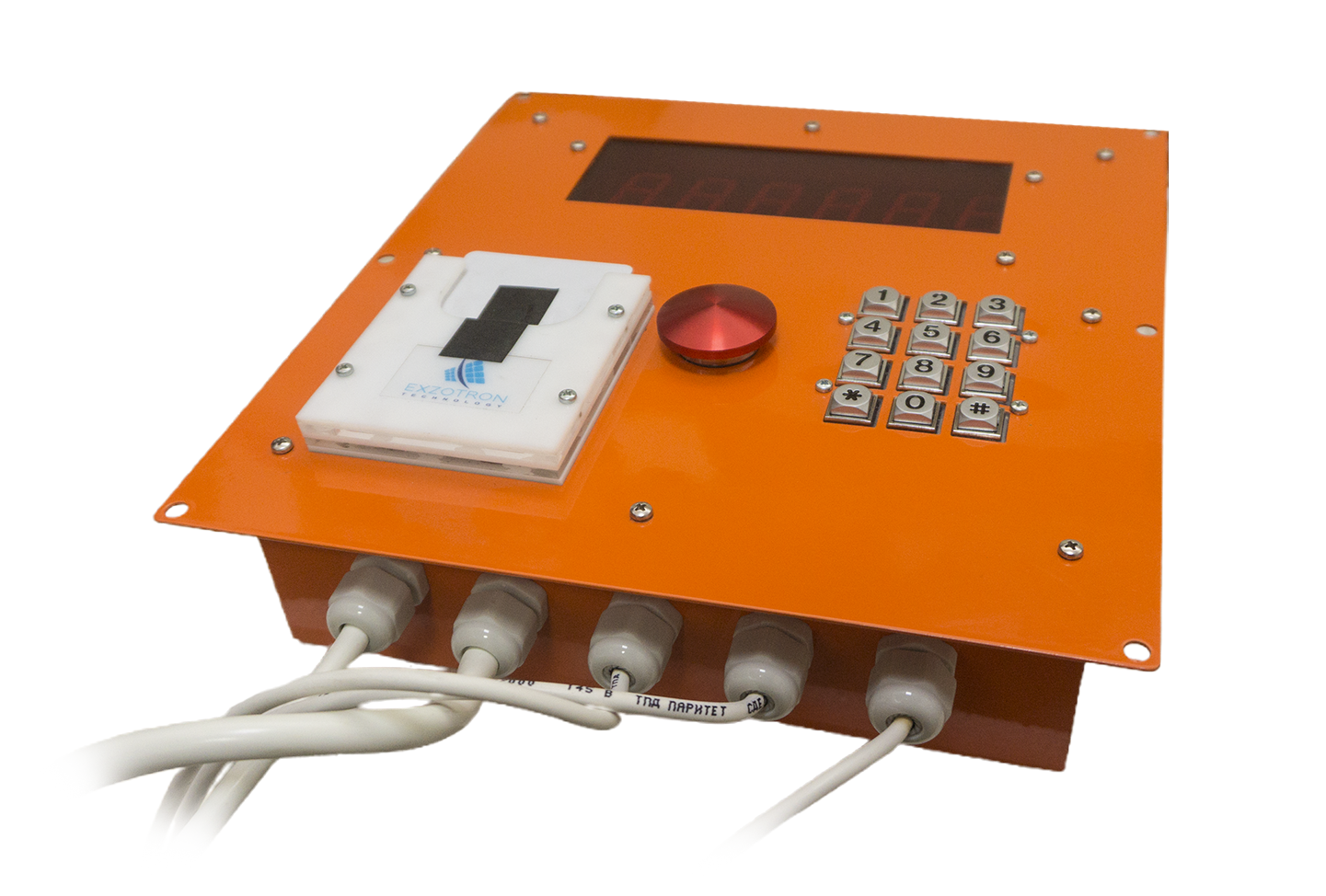

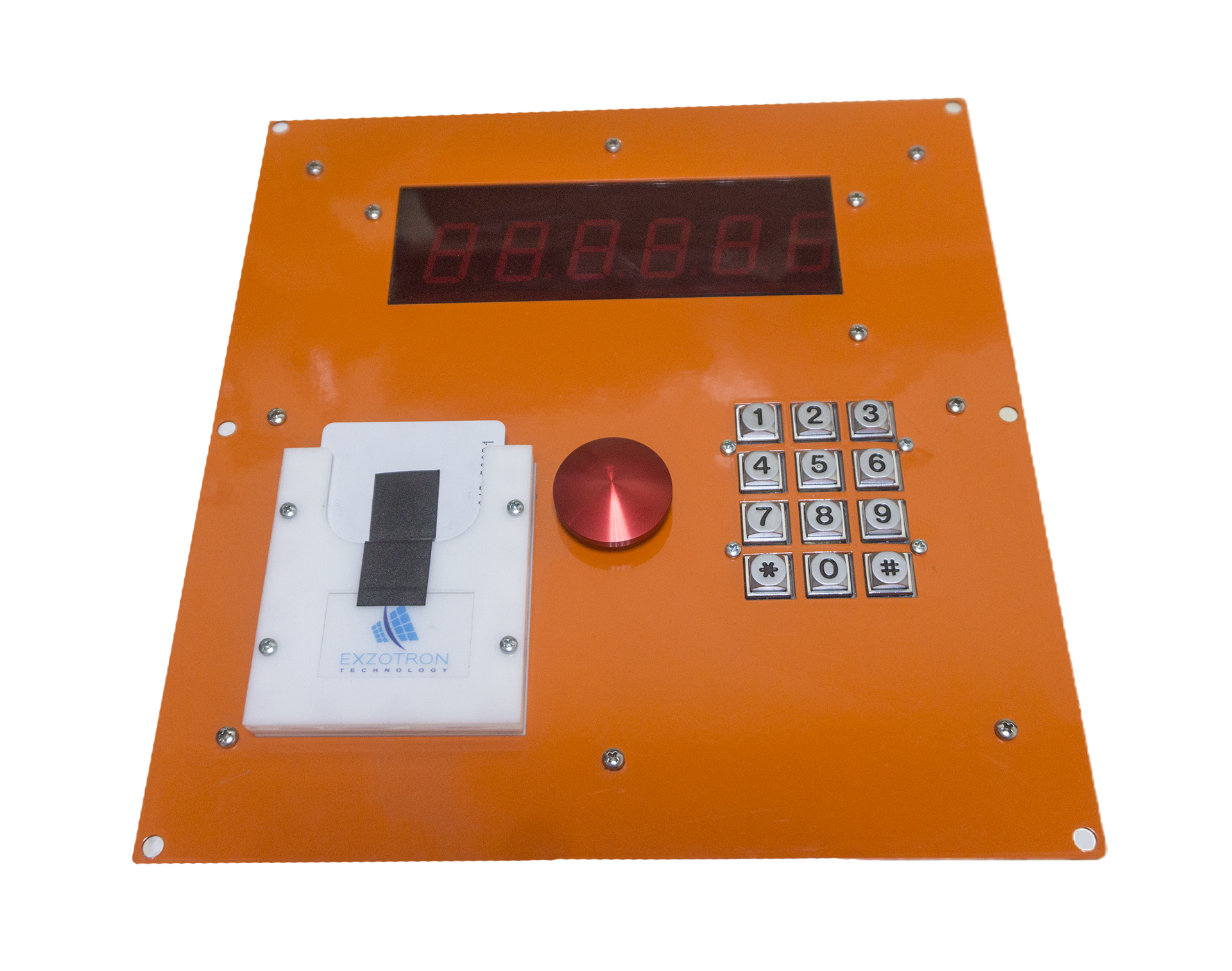

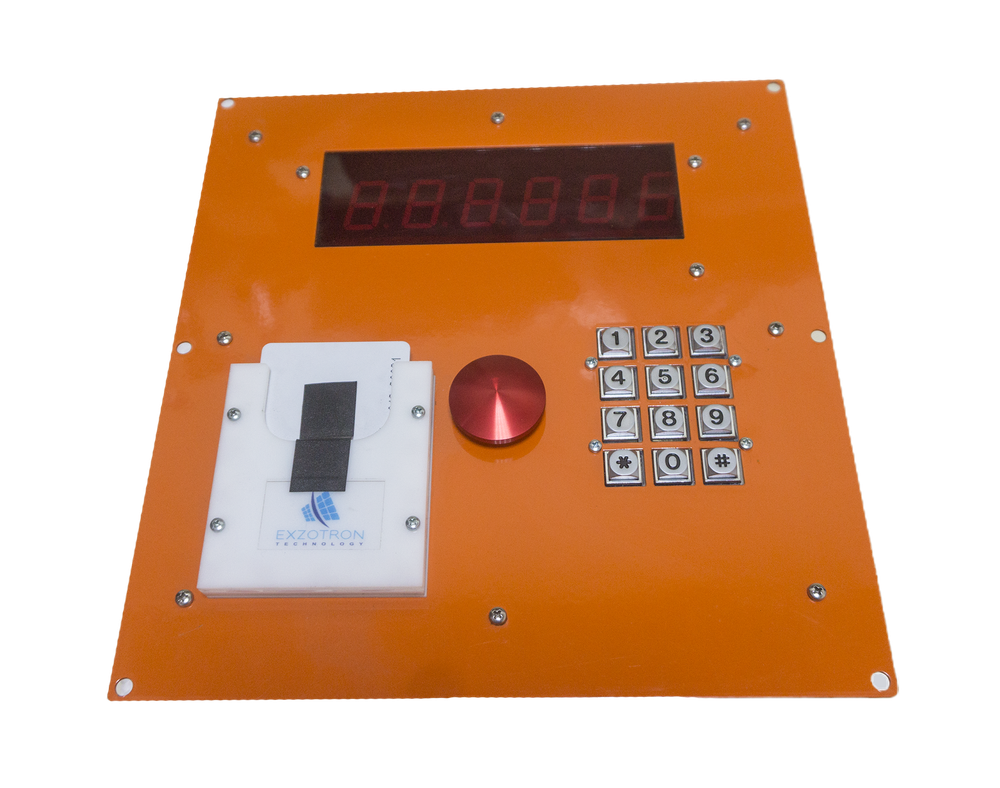

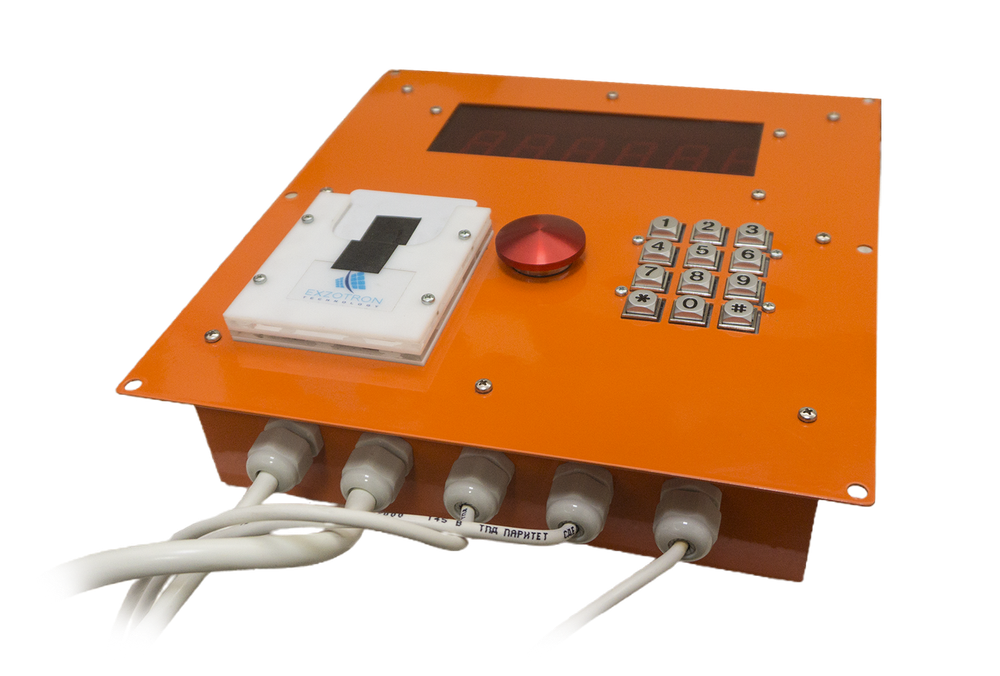

Fuel dispenser module Exzotron EFL - 6.0 (9-36V)

Main features:

• the ability to connect to any counters and signal sources:  counters with pulse output, PPO or DD via USS or DO, & nbsp; volume meters through pulse generators, etc.
• normalized output to eliminate false pulses and determine the actual output readings, especially important for tankers with OSS
• power supply for OSS-type signal pickup devices, sensors revolutions, pulse generators, which by the way do not have built-in fuses and & nbsp; designed exclusively for specific power parameters
• digital LED indication
• color LED indication for important parameters
• indications of the current output
• total counter
• possibility to display the remaining in the tank (FLS readings)
• dual-circuit valve control
• accurate filling as in commercial filling stations, when the last liter is dispensed through the small channel of the double-circuit valve , which also reduces water hammer
• metal keypad for dose dispensing, reading switching, card programming and product control
• RFID card reader for recipient identification
• tamper lock ( what a normally closed valve is used for, which opens only if RFID identification has passed)
• a pocket for an RFID card, which makes the control logic more correct — dispensing is in progress while the card is in the pocket
• start/stop button, which can also be used to stop dispensing in an emergency
• sealable bypass for dispensing without a card if necessary
• elements fast assembly / disassembly — just plug in the necessary chips (power supply, valve, meter output) and the device is ready for operation
• built-in voltage converter (supplied on request)
• integration with ANY monitoring systems: Vialon, Omnik, Autograph , Fort and others
• the ability to transfer data to ANY software applications and cloud control systems
• the possibility of limited fuel delivery.
