Description

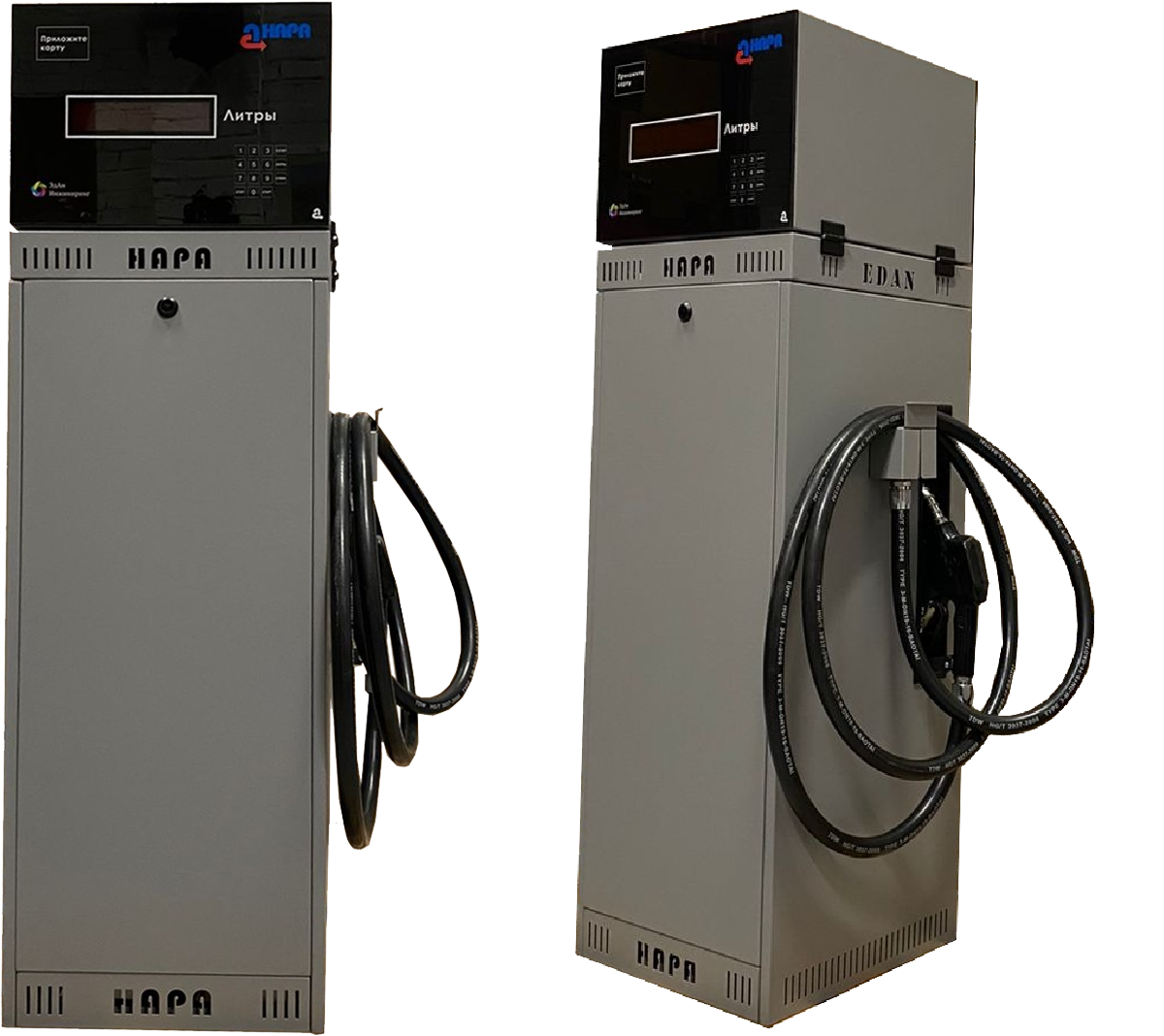

The column is used to measure the volume and output of gasoline, kerosene and diesel fuel at ambient temperatures from
-65 °C to +65 °C.
In the basic configuration, the fuel dispensers are equipped with:
- preset keyboard for fully autonomous operation without an operator;
- lighting system with motion and light sensor for ease of use in low light conditions.
For ground tanks, the use of an expansion tank is mandatory!
Options available:
- autonomous loading system with fuel dispensing by cards;
- completion with Russian electric motors and hoses;
- hull manufacturing in the Customer's colors.
Important!!! The column is equipped with a lightning protection system.
General Specifications Nara 27 sticks:
| Nominal flow, l/min | 50-80* |
| Minimum output dose, l | 2 |
| Main relative error limits at ambient temperature 20±5°С, % | ±0.25 |
| Upper limit of readings for specifying a one-time accounting of the issued amount of fuel, l | 999 |
| Price of one-time accounting pointer division, l | 1 |
| Maximum fuel bypass pressure, MPa | 0,3 |
| Nominal filter fineness, µm | 60 |
| Nominal diameter of the suction pipe, mm | 40 |
| Dispensing arm length, m | 4 |
| Maximum length of suction pipe between dispenser and tank, m | 18 |
| Vacuum pressure at the pump inlet, MPa | |
| for gasoline | 0,035 |
| for diesel and kerosene | 0.05 |
| Pump Drive Motor: | |
| synchronous rpm, min -1 | 1500 |
| power, kW | 0.75 |
| voltage, V | 380 |
| Dimensions, mm | 605 x 480 x 1370 |
| Weight, kg | 150 |
* On request, it is possible to supply fuel dispensers with increased productivity
