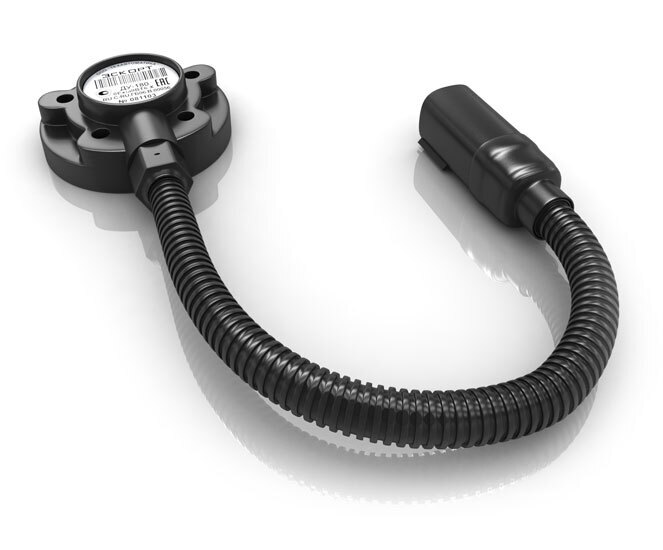

Tilt angle sensor ESCORT DU-180 Ex

Name: Tilt angle sensor ESCORT DU-180 Ex
SKU: 007967

Number

Add to comparison

DU-180 is a measuring device that provides continuous monitoring of the state of the change in the angle of inclination relative to the horizontal axis.

Description

Characteristics

Description

The tilt sensor allows you to transmit information in the form of a digital and analog signal. Depending on the selected mode, data on the change in the deflection angle of the controlled mechanism is generated via the RS-485 interface, in the form of a frequency signal or switching of discrete outputs.

Specifications:

Number of measurement axes	3
Measurement range, °	0…180
Measurement error, °	±1
Power supply voltage range, V	9…36
Consumed current, max, mA	8
Degree of protection	IP67
Operating temperature , °C	-60…+85
Temperature non-linearity, %/°C	±0.1
Output type, analog< /td>	discrete (short to ground)
Output type, < strong>digital	RS-485
Output type, frequency	300…480Hz
Able to work in «master– mode slave»	Yes
